Fox 2.5 Performance Elite 2-3" Lift System - 2019-2024 Ram 1500 4WD
About this Page:

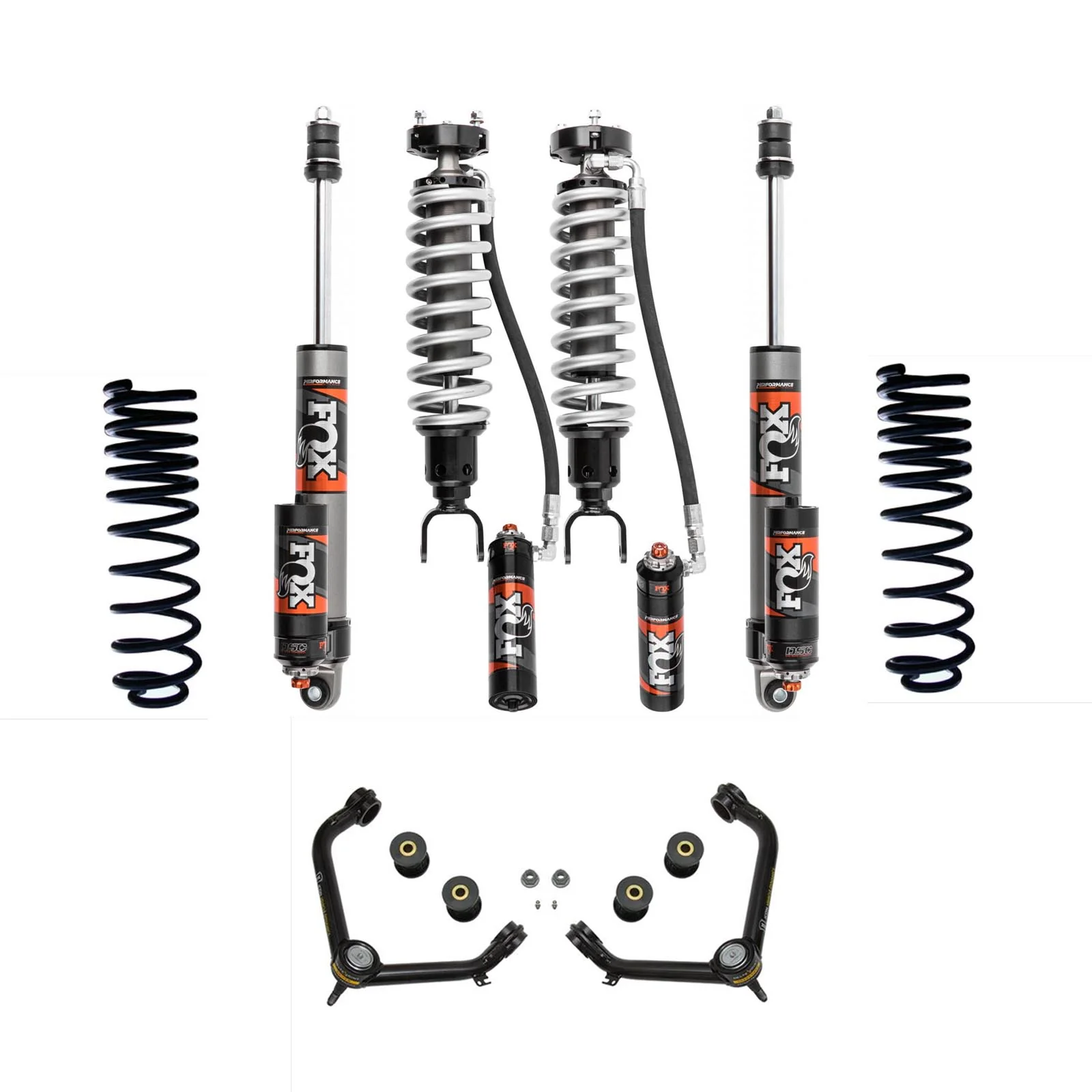

The base kit includes the front coilovers and rear shocks. Any changes to the default selections in the drop down menus will either upgrade your shocks or add additional parts to your build (IE., control arms, springs, etc.). By default, those additional parts and upgrades are not selected.
*Parts have not been tested on air-ride equipped vehicles, consult with our staff prior to your purchase.
Custom Build
This Lift System is built to your personal vehicle specs and will be pieced together based on your parts selection.
Not everything in the pictures are included, only the items you will select for your system will be included.
Estimated time to deliver will vary from 6-10 weeks based on current inventory, and a Shock specialist will contact you immediately after your purchase to verify details. You are welcome to contact us prior to purchase to inquire about product availability.
Fox 2.5 Lift System
The Factory Race series 2.5 coilovers and shocks allow for that go-fast attitude on the dirt or the pavement. Improving handling and comfort in all terrains, these shocks drastically improve ride quality, and with the adjustable DSC option you can fine tune your ride even further.
Engine Differences and Notes: The diesel engine is significantly heavier than the V8 options on these Ram 1500 trucks, in terms of ride height on identical springs. The @roaminglost Ram 1500 4WD Diesel setup pictured here as 600# x 16" springs from Eibach, and achieved 3" total lift with little to no spring preload. This truck is planning on heavier equipment up front like a bumper and winch in the future. For trucks not expecting heavier front load, 550# springs are recommended for optimal ride quality and ride height gain.

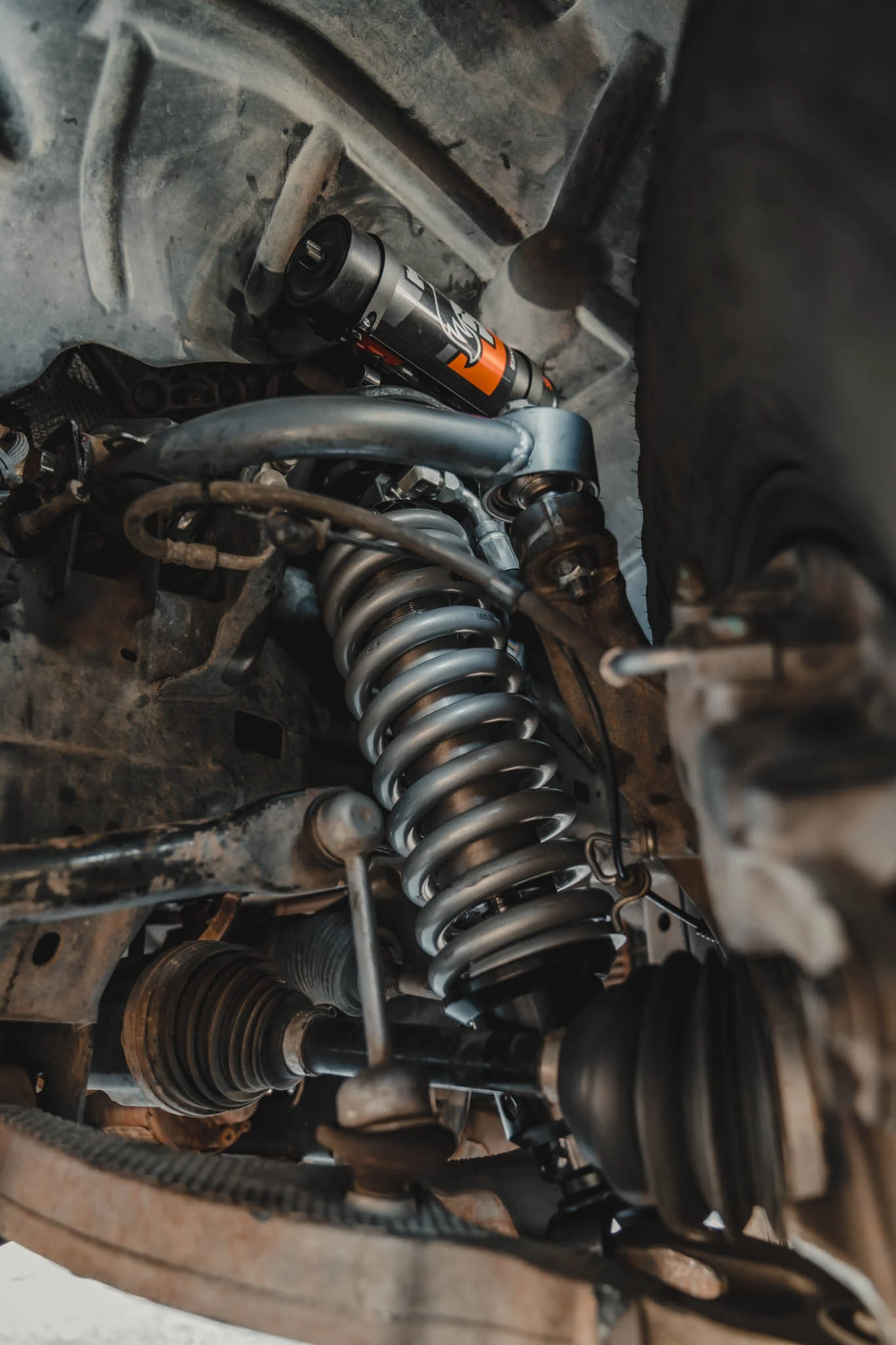

Front Coilover Options
- +0-2" Performance Elite Series 2.5 Coilover Reservoir Shock (Pair) - Adjustable | Excludes Air Ride Models - 883-06-165
- +2-3" Performance Elite Series 2.5 Coilover Reservoir Shock (Pair) - Adjustable | Excludes Air Ride Models | Requires UCA - 883-06-166
Front Spring Options
Fox developed these coilovers with the HEMI 5.7L in mind, with 450lb spring rates that come equipped out of the box. This will present challenges for the diesel engine models, and we suggest upgrading springs to 500/550/600lb rates, depending on vehicle loadout and driving style.

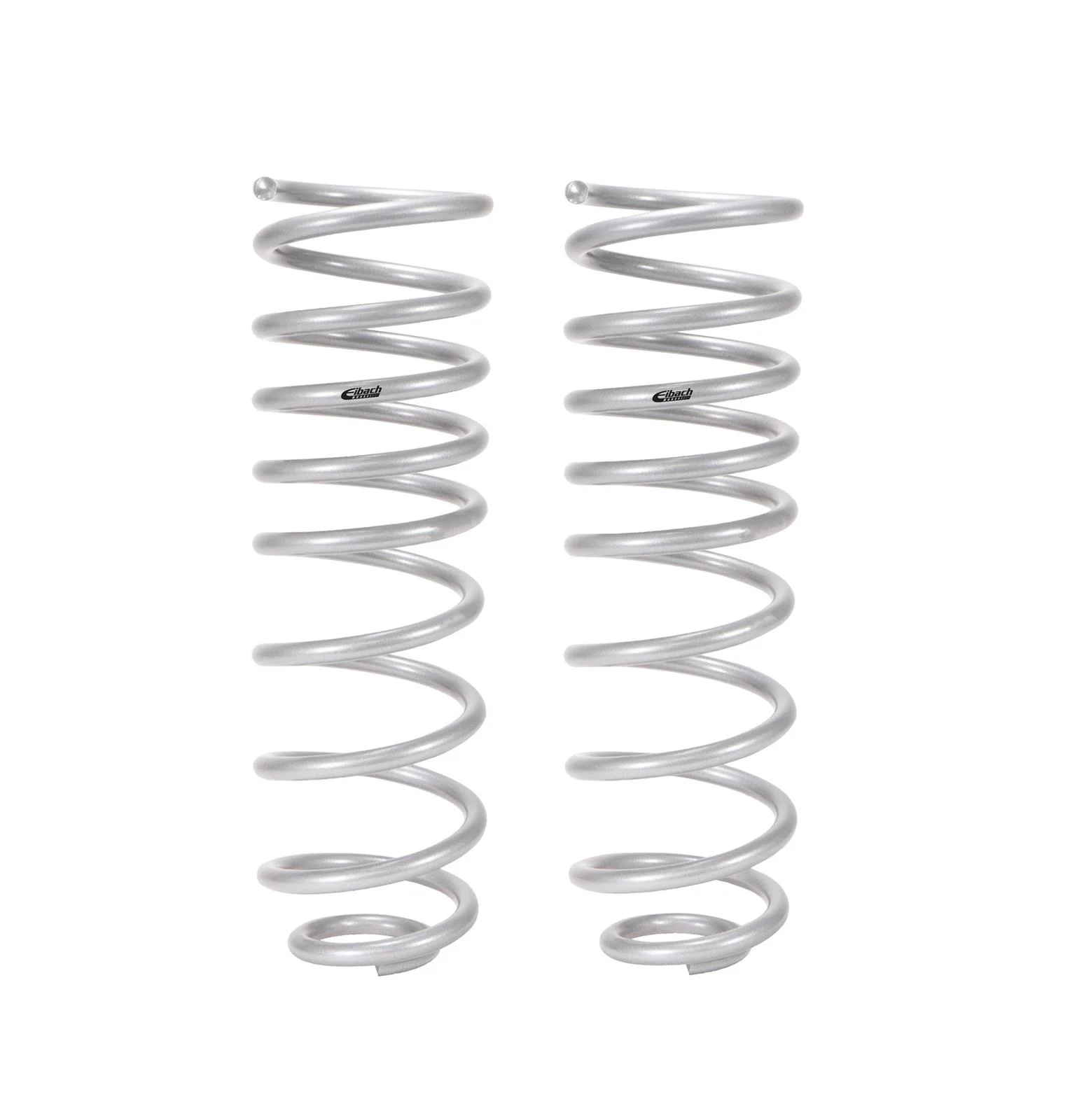

- Fox 450lb x 16" Springs (standard)
- Eibach 500lb x 16" Springs - 1600.300.0500S
- Eibach 550lb x 16" Springs - 1600.300.0550S
- Eibach 600lb x 16" Springs - 1600.300.0600S
- Achieves +3" height gain on Ram Rebel Diesel trucks with no preload.
- Eibach 650lb x 16" Springs - 1600.300.0650S

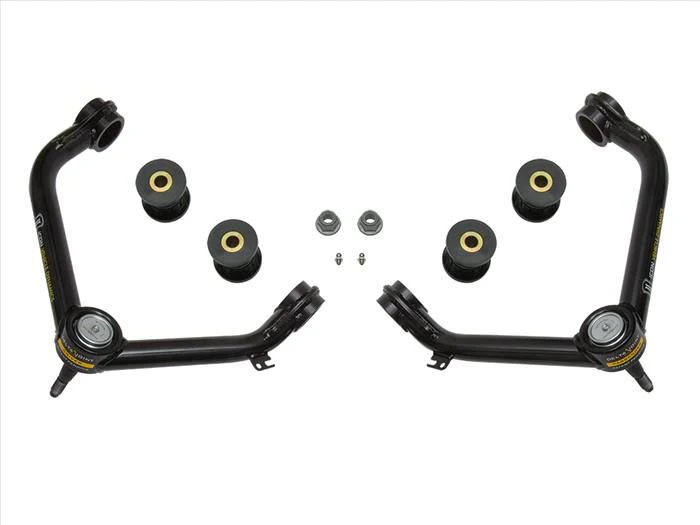

Upper Control Arms
All available arms allow for more suspension articulation compared to stock arms on a lifted vehicle, and is required for alignment, which is important when lifting the vehicle 3-3.5".
- Icon Vehicle Dynamics Tubular Delta Joint - 218550DJ
- Camburg 1.25 Performance Uniball - 810001
Rear Shocks

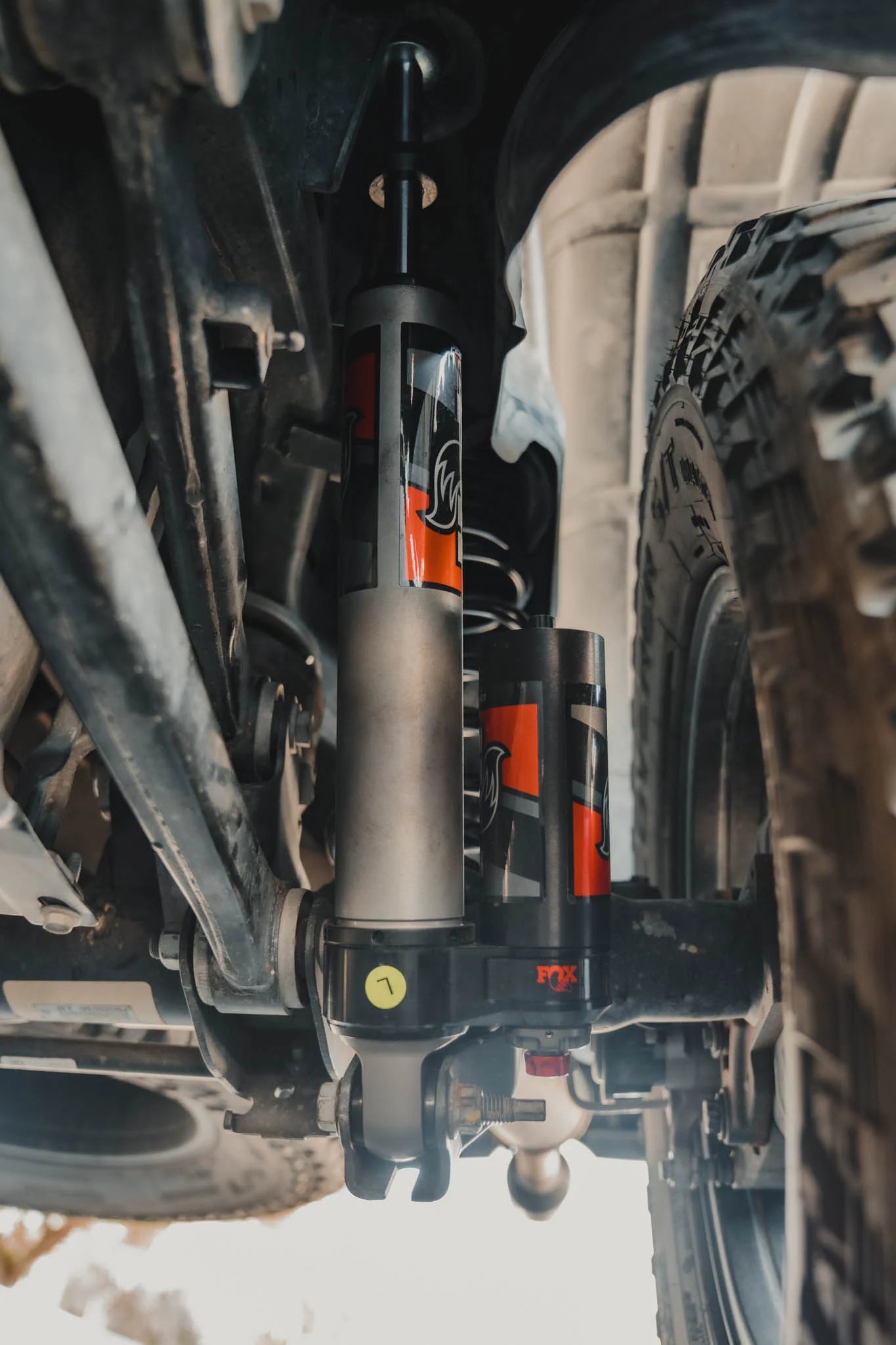

- +0-2" Performance Elite Series 2.5 Reservoir Rear Shocks (Pair) - Adjustable - 883-26-079
Rear Lift Options
- Icon Vehicle Dynamics Rear Dual Rate +1.5" Lift Springs - 212150

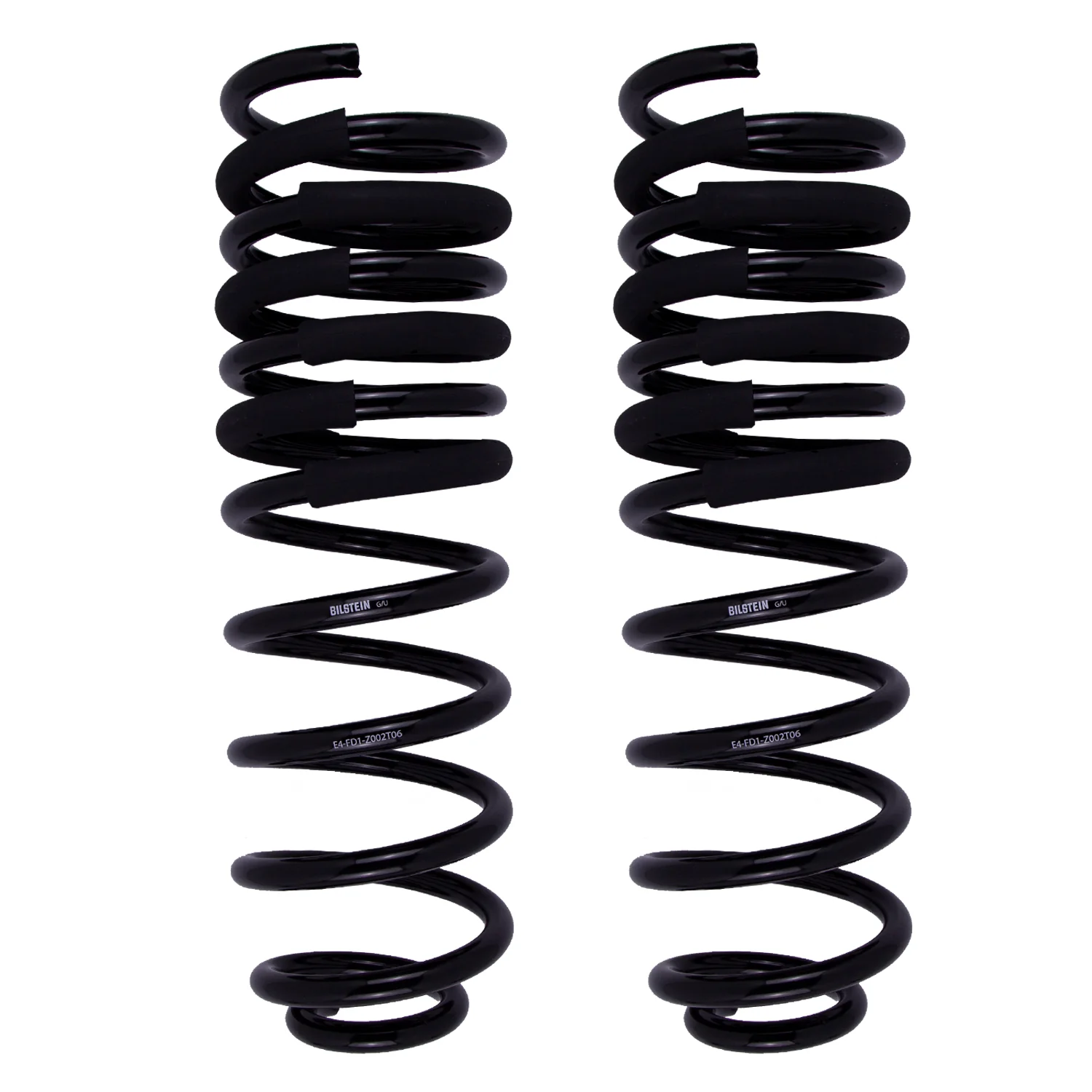

- Eibach Rear Lift Springs +1.0" - E30-27-011-02-02
- Bilstein Rear Lift Springs +1.0" - 53-297839
Helper Spring Options
Timbren Helper springs replaces the factory jounce stop on the frame with progressive rate rubber springs, which adjust automatically to load inputs. These kit do not increase GWVR.
